Android ADB工具 adb,adbd,client,server之间的关系

admin · 发表于 2018-7-11 14:51:47

adb和adbd分析

在adb中有三个模块，分别是adbd，adb server，adb client，如下表所示：

module name

process name

run as

adbd

device/emulator

adb server

windows: adb.exe linux: adb

client

adb client

such as eclipse, screencast,ddm app…and so on

client

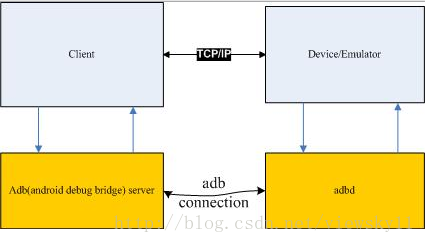

adb server需要连接到adbd，这个连接叫adbconnect，这时候就可以通过客户端与设备端进行沟通，如下图：

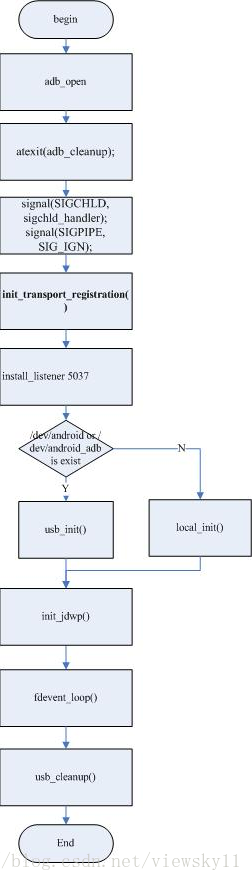

具体的沟通交流层次如下图所示：

adbd是运行在设备端的一个守护进程，具体代码在adb.c中：

int main(int argc, char **argv){#if ADB_HOST adb_sysdeps_init(); adb_trace_init(); D("Handling commandline()\n"); return adb_commandline(argc - 1, argv + 1);#else /* If adbd runs inside the emulator this will enable adb tracing via * adb-debug qemud service in the emulator. */ adb_qemu_trace_init(); if((argc > 1) && (!strcmp(argv[1],"recovery"))) { adb_device_banner = "recovery"; recovery_mode = 1; } start_device_log(); D("Handling main()\n"); return adb_main(0, DEFAULT_ADB_PORT); //adbd的入口#endif}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23

其中adb_main 函数是adbd进程的入口，执行“sevice adbd”时从这里开始调用。

在adbd中将会创建一对socket，一个用来控制连接，一个用来连接到adb client，adbd将会接收和发送信息与应用层的程序进行交流，如图所示：

数据结构

struct fdevent { fdevent *next; fdevent *prev; int fd; int force_eof; unsigned short state; unsigned short events; fd_func func; void *arg;};

1
2
3
4
5
6
7
8
9
10
11
12
13
14

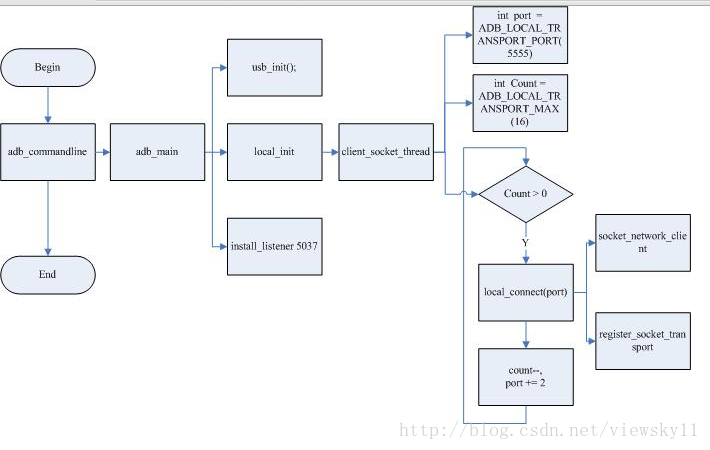

adb server将会扫描设备的5555到5585的奇数端口号，install_listener将会实施交互监听，如图所示：

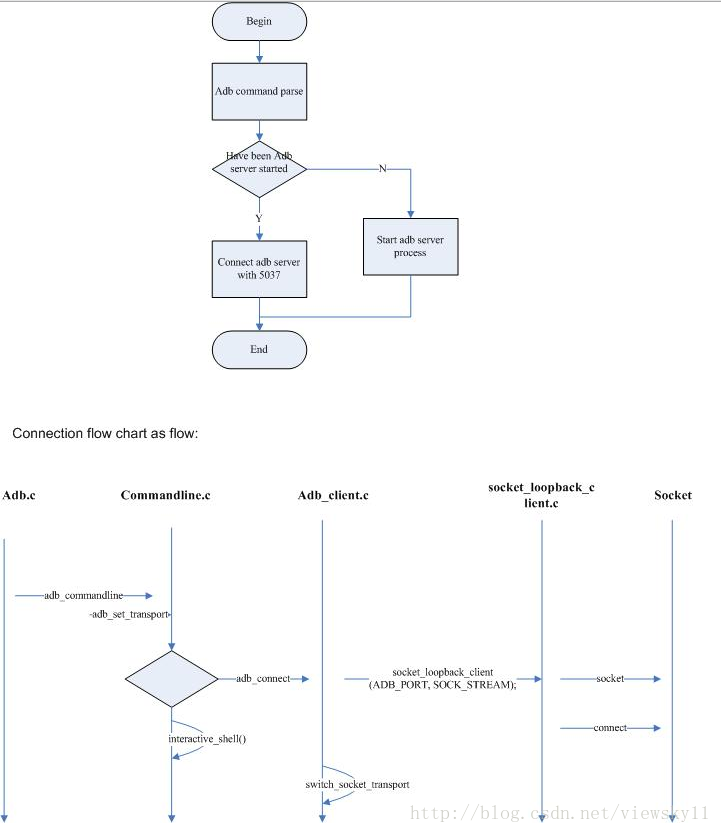

adb server和adb client将会通过socket与设备端进行交流，端口号为5037，如下图：

adb使用PC机可以通过USB或网络与android设备通讯。
adb的源码位于system/core/adb目录下，先来看下编译脚本Android.mk：

# Copyright 2005 The Android Open Source Project## Android.mk for adb#LOCAL_PATH:= $(call my-dir)# adb host tool# =========================================================include $(CLEAR_VARS)# Default to a virtual (sockets) usb interfaceUSB_SRCS :=EXTRA_SRCS :=ifeq ($(HOST_OS),linux) USB_SRCS := usb_linux.c EXTRA_SRCS := get_my_path_linux.c LOCAL_LDLIBS += -lrt -ldl -lpthread LOCAL_CFLAGS += -DWORKAROUND_BUG6558362endififeq ($(HOST_OS),darwin) USB_SRCS := usb_osx.c EXTRA_SRCS := get_my_path_darwin.c LOCAL_LDLIBS += -lpthread -framework CoreFoundation -framework IOKit -framework Carbonendififeq ($(HOST_OS),freebsd) USB_SRCS := usb_libusb.c EXTRA_SRCS := get_my_path_freebsd.c LOCAL_LDLIBS += -lpthread -lusbendififeq ($(HOST_OS),windows) USB_SRCS := usb_windows.c EXTRA_SRCS := get_my_path_windows.c ../libcutils/list.c EXTRA_STATIC_LIBS := AdbWinApi ifneq ($(strip $(USE_CYGWIN)),) # Pure cygwin case LOCAL_LDLIBS += -lpthread -lgdi32 LOCAL_C_INCLUDES += /usr/include/w32api/ddk endif ifneq ($(strip $(USE_MINGW)),) # MinGW under Linux case LOCAL_LDLIBS += -lws2_32 -lgdi32 USE_SYSDEPS_WIN32 := 1 LOCAL_C_INCLUDES += /usr/i586-mingw32msvc/include/ddk endif LOCAL_C_INCLUDES += development/host/windows/usb/api/endifLOCAL_SRC_FILES := \ adb.c \ console.c \ transport.c \ transport_local.c \ transport_usb.c \ commandline.c \ adb_client.c \ adb_auth_host.c \ sockets.c \ services.c \ file_sync_client.c \ $(EXTRA_SRCS) \ $(USB_SRCS) \ utils.c \ usb_vendors.cLOCAL_C_INCLUDES += external/openssl/includeifneq ($(USE_SYSDEPS_WIN32),) LOCAL_SRC_FILES += sysdeps_win32.celse LOCAL_SRC_FILES += fdevent.cendifLOCAL_CFLAGS += -O2 -g -DADB_HOST=1 -Wall -Wno-unused-parameterLOCAL_CFLAGS += -D_XOPEN_SOURCE -D_GNU_SOURCELOCAL_MODULE := adbLOCAL_MODULE_TAGS := debugLOCAL_STATIC_LIBRARIES := libzipfile libunz libcrypto_static $(EXTRA_STATIC_LIBS)ifeq ($(USE_SYSDEPS_WIN32),) LOCAL_STATIC_LIBRARIES += libcutilsendifinclude $(BUILD_HOST_EXECUTABLE)$(call dist-for-goals,dist_files sdk,$(LOCAL_BUILT_MODULE))ifeq ($(HOST_OS),windows)$(LOCAL_INSTALLED_MODULE): \ $(HOST_OUT_EXECUTABLES)/AdbWinApi.dll \ $(HOST_OUT_EXECUTABLES)/AdbWinUsbApi.dllendif# adbd device daemon# =========================================================include $(CLEAR_VARS)LOCAL_SRC_FILES := \ adb.c \ backup_service.c \ fdevent.c \ transport.c \ transport_local.c \ transport_usb.c \ adb_auth_client.c \ sockets.c \ services.c \ file_sync_service.c \ jdwp_service.c \ framebuffer_service.c \ remount_service.c \ usb_linux_client.c \ log_service.c \ utils.cLOCAL_CFLAGS := -O2 -g -DADB_HOST=0 -Wall -Wno-unused-parameterLOCAL_CFLAGS += -D_XOPEN_SOURCE -D_GNU_SOURCEifneq (,$(filter userdebug eng,$(TARGET_BUILD_VARIANT)))LOCAL_CFLAGS += -DALLOW_ADBD_ROOT=1endifLOCAL_MODULE := adbdLOCAL_FORCE_STATIC_EXECUTABLE := trueLOCAL_MODULE_PATH := $(TARGET_ROOT_OUT_SBIN)LOCAL_UNSTRIPPED_PATH := $(TARGET_ROOT_OUT_SBIN_UNSTRIPPED)LOCAL_STATIC_LIBRARIES := libcutils libc libmincryptinclude $(BUILD_EXECUTABLE)# adb host tool for device-as-host# =========================================================ifneq ($(SDK_ONLY),true)include $(CLEAR_VARS)LOCAL_LDLIBS := -lrt -ldl -lpthreadLOCAL_SRC_FILES := \ adb.c \ console.c \ transport.c \ transport_local.c \ transport_usb.c \ commandline.c \ adb_client.c \ adb_auth_host.c \ sockets.c \ services.c \ file_sync_client.c \ get_my_path_linux.c \ usb_linux.c \ utils.c \ usb_vendors.c \ fdevent.cLOCAL_CFLAGS := \ -O2 \ -g \ -DADB_HOST=1 \ -DADB_HOST_ON_TARGET=1 \ -Wall \ -Wno-unused-parameter \ -D_XOPEN_SOURCE \ -D_GNU_SOURCELOCAL_C_INCLUDES += external/openssl/includeLOCAL_MODULE := adbLOCAL_STATIC_LIBRARIES := libzipfile libunz libcutilsLOCAL_SHARED_LIBRARIES := libcryptoinclude $(BUILD_EXECUTABLE)endif

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184

通过编译，最终会有3个执行文件被生成，adbd和两个adb程序。
adbd是设备终端的守护进程；
adb一个是windows、linux、darwin或freebsd运行的程序，另一个是目标机上运行的程序。
其中宏ADB_HOST用于区分是PC端程序还是目标机端的程序。宏ADB_HOST_ON_TARGET用于区分adb程序是否是在目标机上运行。这3个程序使用的是同一份源码，在内部，使用这些宏来区别不同的程序。

先来看adbd程序，此时宏的设置是ADB_HOST=0。在main函数代码中start_device_log()是log的初始化操作，可以重定向输出的log信息，接着进入adb_main()函数。
先来看下它的参数DEFAULT_ADB_PORT：

#if ADB_HOST_ON_TARGET/* adb and adbd are coexisting on the target, so use 5038 for adb * to avoid conflicting with adbd's usage of 5037 */# define DEFAULT_ADB_PORT 5038#else# define DEFAULT_ADB_PORT 5037#endif

1
2
3
4
5
6
7
8

如果是目标机程序，它的值是5038，否则它的值是5037。
这里没有定义ADB_HOST_ON_TARGET，所以它是5037。
adb_main()的源代码如下：

int adb_main(int is_daemon, int server_port){#if !ADB_HOST int port; char value[PROPERTY_VALUE_MAX]; umask(000);#endif atexit(adb_cleanup);#ifdef HAVE_WIN32_PROC SetConsoleCtrlHandler( ctrlc_handler, TRUE );#elif defined(HAVE_FORKEXEC) // No SIGCHLD. Let the service subproc handle its children. signal(SIGPIPE, SIG_IGN);#endif init_transport_registration();//初始化fevent transport_registration_fde#if ADB_HOST HOST = 1;#ifdef WORKAROUND_BUG6558362 if(is_daemon) adb_set_affinity();#endif usb_vendors_init(); usb_init(); local_init(DEFAULT_ADB_LOCAL_TRANSPORT_PORT); adb_auth_init(); char local_name[30]; build_local_name(local_name, sizeof(local_name), server_port); if(install_listener(local_name, "*smartsocket*", NULL, 0)) { exit(1); }#else property_get("ro.adb.secure", value, "0");//判断系统属性ro.adb.secure，目标板没有设置这个宏 auth_enabled = !strcmp(value, "1"); if (auth_enabled) adb_auth_init(); // Our external storage path may be different than apps, since // we aren't able to bind mount after dropping root. const char* adb_external_storage = getenv("ADB_EXTERNAL_STORAGE"); if (NULL != adb_external_storage) { //没有定义环境变量adb_external_storage setenv("EXTERNAL_STORAGE", adb_external_storage, 1); } else { D("Warning: ADB_EXTERNAL_STORAGE is not set. Leaving EXTERNAL_STORAGE" " unchanged.\n"); } /* don't listen on a port (default 5037) if running in secure mode */ /* don't run as root if we are running in secure mode */ /*根据android编译环境should_drop_privileges返回不同的值，如果它的值是userdebug或eng，宏ALLOW_ADBD_ROOT的值被定义为1，执行install_listener()，否则不会定义，这种情况下，由于adbd运行在root下，为保证它的安全性，它需要降级运行*/ if (should_drop_privileges()) { struct __user_cap_header_struct header; struct __user_cap_data_struct cap[2]; if (prctl(PR_SET_KEEPCAPS, 1, 0, 0, 0) != 0) { exit(1); } drop_capabilities_bounding_set_if_needed(); memset(&header, 0, sizeof(header)); memset(cap, 0, sizeof(cap)); /* set CAP_SYS_BOOT capability, so "adb reboot" will succeed */ header.version = _LINUX_CAPABILITY_VERSION_3; header.pid = 0; cap[CAP_TO_INDEX(CAP_SYS_BOOT)].effective |= CAP_TO_MASK(CAP_SYS_BOOT); cap[CAP_TO_INDEX(CAP_SYS_BOOT)].permitted |= CAP_TO_MASK(CAP_SYS_BOOT); capset(&header, cap); D("Local port disabled\n"); } else { char local_name[30]; build_local_name(local_name, sizeof(local_name), server_port); if(install_listener(local_name, "*smartsocket*", NULL, 0)) { exit(1); } } //判断是否存在设备文件USB_ADB_PATH或USB_FFS_ADB_EP0，存在则执行usb_init() int usb = 0; if (access(USB_ADB_PATH, F_OK) == 0 || access(USB_FFS_ADB_EP0, F_OK) == 0) { // listen on USB usb_init(); usb = 1; } // If one of these properties is set, also listen on that port // If one of the properties isn't set and we couldn't listen on usb, // listen on the default port. //读取属性service.adb.tcp.port或persist.adb.tcp.port,执行local_init()，它内部会创建adb thread property_get("service.adb.tcp.port", value, ""); if (!value[0]) { property_get("persist.adb.tcp.port", value, ""); } if (sscanf(value, "%d", &port) == 1 && port > 0) { printf("using port=%d\n", port); // listen on TCP port specified by service.adb.tcp.port property local_init(port); } else { // listen on default port local_init(DEFAULT_ADB_LOCAL_TRANSPORT_PORT); } D("adb_main(): pre init_jdwp()\n"); init_jdwp();//执行init_jdwp()，jdwp是Java调试体系中的一种 D("adb_main(): post init_jdwp()\n");#endif if (is_daemon) { // inform our parent that we are up and running.#ifdef HAVE_WIN32_PROC DWORD count; WriteFile( GetStdHandle( STD_OUTPUT_HANDLE ), "OK\n", 3, &count, NULL );#elif defined(HAVE_FORKEXEC) fprintf(stderr, "OK\n");#endif start_logging(); } D("Event loop starting\n"); fdevent_loop();//调用fdevent_loop()监听fdevent并处理 usb_cleanup(); return 0;}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134

再来看adb程序的执行：
在main()中调用return adb_commandline(argc - 1, argv + 1)：

int adb_commandline(int argc, char **argv){ char buf[4096]; int no_daemon = 0; int is_daemon = 0; int is_server = 0; int persist = 0; int r; int quote; transport_type ttype = kTransportAny; char* serial = NULL; char* server_port_str = NULL; /* If defined, this should be an absolute path to * the directory containing all of the various system images * for a particular product. If not defined, and the adb * command requires this information, then the user must * specify the path using "-p". */ gProductOutPath = getenv("ANDROID_PRODUCT_OUT"); if (gProductOutPath == NULL || gProductOutPath[0] == '\0') { gProductOutPath = NULL; } // TODO: also try TARGET_PRODUCT/TARGET_DEVICE as a hint serial = getenv("ANDROID_SERIAL"); /* Validate and assign the server port */ server_port_str = getenv("ANDROID_ADB_SERVER_PORT"); int server_port = DEFAULT_ADB_PORT; if (server_port_str && strlen(server_port_str) > 0) { server_port = (int) strtol(server_port_str, NULL, 0); if (server_port <= 0 || server_port > 65535) { fprintf(stderr, "adb: Env var ANDROID_ADB_SERVER_PORT must be a positive number less than 65535. Got \"%s\"\n", server_port_str); return usage(); } } /* modifiers and flags */ while(argc > 0) { if(!strcmp(argv[0],"server")) { is_server = 1; } else if(!strcmp(argv[0],"nodaemon")) { no_daemon = 1; } else if (!strcmp(argv[0], "fork-server")) { /* this is a special flag used only when the ADB client launches the ADB Server */ is_daemon = 1; } else if(!strcmp(argv[0],"persist")) { persist = 1; } else if(!strncmp(argv[0], "-p", 2)) { const char *product = NULL; if (argv[0][2] == '\0') { if (argc < 2) return usage(); product = argv[1]; argc--; argv++; } else { product = argv[0] + 2; } gProductOutPath = find_product_out_path(product); if (gProductOutPath == NULL) { fprintf(stderr, "adb: could not resolve \"-p %s\"\n", product); return usage(); } } else if (argv[0][0]=='-' && argv[0][1]=='s') { if (isdigit(argv[0][2])) { serial = argv[0] + 2; } else { if(argc < 2 || argv[0][2] != '\0') return usage(); serial = argv[1]; argc--; argv++; } } else if (!strcmp(argv[0],"-d")) { ttype = kTransportUsb; } else if (!strcmp(argv[0],"-e")) { ttype = kTransportLocal; } else if (!strcmp(argv[0],"-a")) { gListenAll = 1; } else if(!strncmp(argv[0], "-H", 2)) { const char *hostname = NULL; if (argv[0][2] == '\0') { if (argc < 2) return usage(); hostname = argv[1]; argc--; argv++; } else { hostname = argv[0] + 2; } adb_set_tcp_name(hostname); } else if(!strncmp(argv[0], "-P", 2)) { if (argv[0][2] == '\0') { if (argc < 2) return usage(); server_port_str = argv[1]; argc--; argv++; } else { server_port_str = argv[0] + 2; } if (strlen(server_port_str) > 0) { server_port = (int) strtol(server_port_str, NULL, 0); if (server_port <= 0 || server_port > 65535) { fprintf(stderr, "adb: port number must be a positive number less than 65536. Got \"%s\"\n", server_port_str); return usage(); } } else { fprintf(stderr, "adb: port number must be a positive number less than 65536. Got empty string.\n"); return usage(); } } else { /* out of recognized modifiers and flags */ break; } argc--; argv++; } adb_set_transport(ttype, serial); adb_set_tcp_specifics(server_port); if (is_server) { if (no_daemon || is_daemon) { r = adb_main(is_daemon, server_port); } else { r = launch_server(server_port); } if(r) { fprintf(stderr,"* could not start server *\n"); } return r; }top: if(argc == 0) { return usage(); } /* adb_connect() commands */ if(!strcmp(argv[0], "devices")) { char *tmp; char *listopt; if (argc < 2) listopt = ""; else if (argc == 2 && !strcmp(argv[1], "-l")) listopt = argv[1]; else { fprintf(stderr, "Usage: adb devices [-l]\n"); return 1; } snprintf(buf, sizeof buf, "host:%s%s", argv[0], listopt); tmp = adb_query(buf); if(tmp) { printf("List of devices attached \n"); printf("%s\n", tmp); return 0; } else { return 1; } } if(!strcmp(argv[0], "connect")) { char *tmp; if (argc != 2) { fprintf(stderr, "Usage: adb connect <host>[:<port>]\n"); return 1; } snprintf(buf, sizeof buf, "host:connect:%s", argv[1]); tmp = adb_query(buf); if(tmp) { printf("%s\n", tmp); return 0; } else { return 1; } } if(!strcmp(argv[0], "disconnect")) { char *tmp; if (argc > 2) { fprintf(stderr, "Usage: adb disconnect [<host>[:<port>]]\n"); return 1; } if (argc == 2) { snprintf(buf, sizeof buf, "host:disconnect:%s", argv[1]); } else { snprintf(buf, sizeof buf, "host:disconnect:"); } tmp = adb_query(buf); if(tmp) { printf("%s\n", tmp); return 0; } else { return 1; } } if (!strcmp(argv[0], "emu")) { return adb_send_emulator_command(argc, argv); } if(!strcmp(argv[0], "shell") || !strcmp(argv[0], "hell")) { int r; int fd; char h = (argv[0][0] == 'h'); if (h) { printf("\x1b[41;33m"); fflush(stdout); } if(argc < 2) { D("starting interactive shell\n"); r = interactive_shell(); if (h) { printf("\x1b[0m"); fflush(stdout); } return r; } snprintf(buf, sizeof buf, "shell:%s", argv[1]); argc -= 2; argv += 2; while(argc-- > 0) { strcat(buf, " "); /* quote empty strings and strings with spaces */ quote = (**argv == 0 || strchr(*argv, ' ')); if (quote) strcat(buf, "\""); strcat(buf, *argv++); if (quote) strcat(buf, "\""); } for(;;) { D("interactive shell loop. buff=%s\n", buf); fd = adb_connect(buf); if(fd >= 0) { D("about to read_and_dump(fd=%d)\n", fd); read_and_dump(fd); D("read_and_dump() done.\n"); adb_close(fd); r = 0; } else { fprintf(stderr,"error: %s\n", adb_error()); r = -1; } if(persist) { fprintf(stderr,"\n- waiting for device -\n"); adb_sleep_ms(1000); do_cmd(ttype, serial, "wait-for-device", 0); } else { if (h) { printf("\x1b[0m"); fflush(stdout); } D("interactive shell loop. return r=%d\n", r); return r; } } } if(!strcmp(argv[0], "kill-server")) { int fd; fd = _adb_connect("host:kill"); if(fd == -1) { fprintf(stderr,"* server not running *\n"); return 1; } return 0; } if(!strcmp(argv[0], "sideload")) { if(argc != 2) return usage(); if(adb_download("sideload", argv[1], 1)) { return 1; } else { return 0; } } if(!strcmp(argv[0], "remount") || !strcmp(argv[0], "reboot") || !strcmp(argv[0], "reboot-bootloader") || !strcmp(argv[0], "tcpip") || !strcmp(argv[0], "usb") || !strcmp(argv[0], "root")) { char command[100]; if (!strcmp(argv[0], "reboot-bootloader")) snprintf(command, sizeof(command), "reboot:bootloader"); else if (argc > 1) snprintf(command, sizeof(command), "%s:%s", argv[0], argv[1]); else snprintf(command, sizeof(command), "%s:", argv[0]); int fd = adb_connect(command); if(fd >= 0) { read_and_dump(fd); adb_close(fd); return 0; } fprintf(stderr,"error: %s\n", adb_error()); return 1; } if(!strcmp(argv[0], "bugreport")) { if (argc != 1) return usage(); do_cmd(ttype, serial, "shell", "bugreport", 0); return 0; } /* adb_command() wrapper commands */ if(!strncmp(argv[0], "wait-for-", strlen("wait-for-"))) { char* service = argv[0]; if (!strncmp(service, "wait-for-device", strlen("wait-for-device"))) { if (ttype == kTransportUsb) { service = "wait-for-usb"; } else if (ttype == kTransportLocal) { service = "wait-for-local"; } else { service = "wait-for-any"; } } format_host_command(buf, sizeof buf, service, ttype, serial); if (adb_command(buf)) { D("failure: %s *\n",adb_error()); fprintf(stderr,"error: %s\n", adb_error()); return 1; } /* Allow a command to be run after wait-for-device, * e.g. 'adb wait-for-device shell'. */ if(argc > 1) { argc--; argv++; goto top; } return 0; } if(!strcmp(argv[0], "forward")) { char host_prefix[64]; char remove = 0; char remove_all = 0; char list = 0; char no_rebind = 0; // Parse options here. while (argc > 1 && argv[1][0] == '-') { if (!strcmp(argv[1], "--list")) list = 1; else if (!strcmp(argv[1], "--remove")) remove = 1; else if (!strcmp(argv[1], "--remove-all")) remove_all = 1; else if (!strcmp(argv[1], "--no-rebind")) no_rebind = 1; else { return usage(); } argc--; argv++; } // Ensure we can only use one option at a time. if (list + remove + remove_all + no_rebind > 1) { return usage(); } // Determine the <host-prefix> for this command. if (serial) { snprintf(host_prefix, sizeof host_prefix, "host-serial:%s", serial); } else if (ttype == kTransportUsb) { snprintf(host_prefix, sizeof host_prefix, "host-usb"); } else if (ttype == kTransportLocal) { snprintf(host_prefix, sizeof host_prefix, "host-local"); } else { snprintf(host_prefix, sizeof host_prefix, "host"); } // Implement forward --list if (list) { if (argc != 1) return usage(); snprintf(buf, sizeof buf, "%s:list-forward", host_prefix); char* forwards = adb_query(buf); if (forwards == NULL) { fprintf(stderr, "error: %s\n", adb_error()); return 1; } printf("%s", forwards); free(forwards); return 0; } // Implement forward --remove-all else if (remove_all) { if (argc != 1) return usage(); snprintf(buf, sizeof buf, "%s:killforward-all", host_prefix); } // Implement forward --remove <local> else if (remove) { if (argc != 2) return usage(); snprintf(buf, sizeof buf, "%s:killforward:%s", host_prefix, argv[1]); } // Or implement one of: // forward <local> <remote> // forward --no-rebind <local> <remote> else { if (argc != 3) return usage(); const char* command = no_rebind ? "forward:norebind:" : "forward"; snprintf(buf, sizeof buf, "%s:%s:%s;%s", host_prefix, command, argv[1], argv[2]); } if(adb_command(buf)) { fprintf(stderr,"error: %s\n", adb_error()); return 1; } return 0; } /* do_sync_*() commands */ if(!strcmp(argv[0], "ls")) { if(argc != 2) return usage(); return do_sync_ls(argv[1]); } if(!strcmp(argv[0], "push")) { if(argc != 3) return usage(); return do_sync_push(argv[1], argv[2], 0 /* no verify APK */); } if(!strcmp(argv[0], "pull")) { if (argc == 2) { return do_sync_pull(argv[1], "."); } else if (argc == 3) { return do_sync_pull(argv[1], argv[2]); } else { return usage(); } } if(!strcmp(argv[0], "install")) { if (argc < 2) return usage(); return install_app(ttype, serial, argc, argv); } if(!strcmp(argv[0], "uninstall")) { if (argc < 2) return usage(); return uninstall_app(ttype, serial, argc, argv); } if(!strcmp(argv[0], "sync")) { char *srcarg, *android_srcpath, *data_srcpath; int listonly = 0; int ret; if(argc < 2) { /* No local path was specified. */ srcarg = NULL; } else if (argc >= 2 && strcmp(argv[1], "-l") == 0) { listonly = 1; if (argc == 3) { srcarg = argv[2]; } else { srcarg = NULL; } } else if(argc == 2) { /* A local path or "android"/"data" arg was specified. */ srcarg = argv[1]; } else { return usage(); } ret = find_sync_dirs(srcarg, &android_srcpath, &data_srcpath); if(ret != 0) return usage(); if(android_srcpath != NULL) ret = do_sync_sync(android_srcpath, "/system", listonly); if(ret == 0 && data_srcpath != NULL) ret = do_sync_sync(data_srcpath, "/data", listonly); free(android_srcpath); free(data_srcpath); return ret; } /* passthrough commands */ if(!strcmp(argv[0],"get-state") || !strcmp(argv[0],"get-serialno") || !strcmp(argv[0],"get-devpath")) { char *tmp; format_host_command(buf, sizeof buf, argv[0], ttype, serial); tmp = adb_query(buf); if(tmp) { printf("%s\n", tmp); return 0; } else { return 1; } } /* other commands */ if(!strcmp(argv[0],"status-window")) { status_window(ttype, serial); return 0; } if(!strcmp(argv[0],"logcat") || !strcmp(argv[0],"lolcat") || !strcmp(argv[0],"longcat")) { return logcat(ttype, serial, argc, argv); } if(!strcmp(argv[0],"ppp")) { return ppp(argc, argv); } if (!strcmp(argv[0], "start-server")) { return adb_connect("host:start-server"); } if (!strcmp(argv[0], "backup")) { return backup(argc, argv); } if (!strcmp(argv[0], "restore")) { return restore(argc, argv); } if (!strcmp(argv[0], "jdwp")) { int fd = adb_connect("jdwp"); if (fd >= 0) { read_and_dump(fd); adb_close(fd); return 0; } else { fprintf(stderr, "error: %s\n", adb_error()); return -1; } } /* "adb /?" is a common idiom under Windows */ if(!strcmp(argv[0], "help") || !strcmp(argv[0], "/?")) { help(); return 0; } if(!strcmp(argv[0], "version")) { version(stdout); return 0; } usage(); return 1;}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
465
466
467
468
469
470
471
472
473
474
475
476
477
478
479
480
481
482
483
484
485
486
487
488
489
490
491
492
493
494
495
496
497
498
499
500
501
502
503
504
505
506
507
508
509
510
511
512
513
514
515
516
517
518
519
520
521
522
523
524
525
526
527
528
529
530
531
532
533
534
535
536
537
538
539
540
541
542
543
544
545
546
547
548
549
550
551
552
553
554
555
556
557
558
559
560
561
562
563
564
565
566
567
568
569
570
571
572
573
574
575
576
577
578

adb_commandline 函数根据命令的参数执行不同的功能。adb程序可能以服务的方式或命令行客户端的方式运行。

使用usb进行调试，则执行usb_init()，它的代码在usb_linux_client.c 中，如下：

void usb_init(){ if (access(USB_FFS_ADB_EP0, F_OK) == 0) usb_ffs_init(); else usb_adb_init();}

1
2
3
4
5
6
7
8
9

调用usb_adb_init():

static void usb_adb_init(){ usb_handle *h; adb_thread_t tid; int fd; h = calloc(1, sizeof(usb_handle)); h->write = usb_adb_write; h->read = usb_adb_read; h->kick = usb_adb_kick; h->fd = -1; adb_cond_init(&h->notify, 0); adb_mutex_init(&h->lock, 0); // Open the file /dev/android_adb_enable to trigger // the enabling of the adb USB function in the kernel. // We never touch this file again - just leave it open // indefinitely so the kernel will know when we are running // and when we are not. fd = unix_open("/dev/android_adb_enable", O_RDWR); if (fd < 0) { D("failed to open /dev/android_adb_enable\n"); } else { close_on_exec(fd); } D("[ usb_init - starting thread ]\n"); if(adb_thread_create(&tid, usb_adb_open_thread, h)){ fatal_errno("cannot create usb thread"); }}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34

它初始化了usb_handle，并把它作为参数创建usb_adb_open_thread()线程。这里不能打开/dev/android_adb_enable。h->fd的值会在线程usb_adb_open_thread中赋值，并把它做为h->write(), h->read(), h->kick()的文件句柄，h->kick()函数功能是把h->fd置为-1。
usb_adb_open_thread的代码如下：

static void *usb_adb_open_thread(void *x){ struct usb_handle *usb = (struct usb_handle *)x; int fd; while (1) { // wait until the USB device needs opening adb_mutex_lock(&usb->lock); while (usb->fd != -1) adb_cond_wait(&usb->notify, &usb->lock); adb_mutex_unlock(&usb->lock); D("[ usb_thread - opening device ]\n"); do { /* XXX use inotify? */ fd = unix_open("/dev/android_adb", O_RDWR); if (fd < 0) { // to support older kernels fd = unix_open("/dev/android", O_RDWR); } if (fd < 0) { adb_sleep_ms(1000); } } while (fd < 0); D("[ opening device succeeded ]\n"); close_on_exec(fd); usb->fd = fd; D("[ usb_thread - registering device ]\n"); register_usb_transport(usb, 0, 0, 1); } // never gets here return 0;}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36

这个线程的作用是一进入立即打开/dev/android_adb或/dev/Android，如果成功，则调用register_usb_transport()后再次循环，并阻塞在以下代码处

while(usb->fd != -1) adb_cond_wait(&usb->notify, &usb->lock);

1
2
3

当usb->kick()调用后fd的值被赋为-1，并发送cond唤醒上面的代码。

adb源码fdevent.c文件中定义了工作时创建、监听和处理读写事件。

static fdevent **fd_table = 0; //fd_table保存的是以fdevent->fd为索引保存的fdevent指针static int fd_table_max = 0;

1
2

the_fdevent的值等于fd_table[the_fdevent->fd]

static void fdevent_register(fdevent *fde){ if(fde->fd < 0) { FATAL("bogus negative fd (%d)\n", fde->fd); } if(fde->fd >= fd_table_max) { //初始化或自动增长fd_table int oldmax = fd_table_max; if(fde->fd > 32000) { FATAL("bogus huuuuge fd (%d)\n", fde->fd); } if(fd_table_max == 0) { fdevent_init(); fd_table_max = 256; } while(fd_table_max <= fde->fd) { fd_table_max *= 2; } fd_table = realloc(fd_table, sizeof(fdevent*) * fd_table_max); if(fd_table == 0) { FATAL("could not expand fd_table to %d entries\n", fd_table_max); } memset(fd_table + oldmax, 0, sizeof(int) * (fd_table_max - oldmax)); } fd_table[fde->fd] = fde; //将fde添加到fd_table}static void fdevent_unregister(fdevent *fde) //这个函数即将fde从fd_table中删除 { if((fde->fd < 0) || (fde->fd >= fd_table_max)) { FATAL("fd out of range (%d)\n", fde->fd); } if(fd_table[fde->fd] != fde) { FATAL("fd_table out of sync [%d]\n", fde->fd); } fd_table[fde->fd] = 0; if(!(fde->state & FDE_DONT_CLOSE)) { //如果fde->fd打开了并没有关闭，需要执行关闭操作 dump_fde(fde, "close"); adb_close(fde->fd); }}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46

其中fdevent是代码处理事件的载体，结构体定义如下

struct fdevent { fdevent *next; fdevent *prev; //表明是循环链表 int fd; int force_eof; unsigned short state; //低8位表示事件，高8位表示状态 unsigned short events; //需要处理的事件 fd_func func; //事件处理回调函数 void *arg; //参数 };

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

其中事件可以是：

/* events that may be observed */#define FDE_READ 0x0001#define FDE_WRITE 0x0002#define FDE_ERROR 0x0004#define FDE_TIMEOUT 0x0008/* features that may be set (via the events set/add/del interface) */#define FDE_DONT_CLOSE 0x0080

1
2
3
4
5
6
7
8

状态可以是：

#define FDE_ACTIVE 0x0100#define FDE_PENDING 0x0200#define FDE_CREATED 0x0400

1
2
3

时间和状态的掩码分别为：

#define FDE_EVENTMASK 0x00ff#define FDE_STATEMASK 0xff00

1
2
3

注意，这些状态是可以同时存在的。
当调用fdevent_create()后，FDE_CREATED标志被设置，当调用fdevent_install()后， FDE_CREATED标志被设置，但在fdevent_create()内部调用了fdevent_install()，所以调用fdevent_create()都被设置了。
当有事件在调用select发生后，相应的事件state会设置为FDE_PENDING，当事件处理完后这个标志又被删除。相应的代码是：

void fdevent_loop(){ fdevent *fde; fdevent_subproc_setup(); for(;;) { D("--- ---- waiting for events\n"); fdevent_process();///在这个函数中调用select，当有事件发生时，state被设置为FDE_PENDING，event也会被设置。所有的pending事件都会被保存在全局变量list_pending中。 while((fde = fdevent_plist_dequeue())) { //处理list_pending变量的事件 fdevent_call_fdfunc(fde); } }}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17

其中list_pending的相关代码：

//变量定义和初始化 static fdevent list_pending = { .next = &list_pending, .prev = &list_pending,};//添加一个元素 static void fdevent_plist_enqueue(fdevent *node){ fdevent *list = &list_pending; node->next = list; node->prev = list->prev; node->prev->next = node; list->prev = node;}//删除一个指定元素 static void fdevent_plist_remove(fdevent *node){ node->prev->next = node->next; node->next->prev = node->prev; node->next = 0; node->prev = 0;}//从list中取出一个元素 static fdevent *fdevent_plist_dequeue(void){ fdevent *list = &list_pending; fdevent *node = list->next; if(node == list) return 0; list->next = node->next; list->next->prev = list; node->next = 0; node->prev = 0; return node;}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42

事件的处理是阻塞方式的，可以有两种代码实现方法。定义宏CRAPTASTIC表示使用epoll的方式，否则使用select方式。这里只列举select的处理方式：

static fd_set read_fds;       //读事件集合  static fd_set write_fds;    //写事件集合  static fd_set error_fds;    //发生错误事件集合  static int select_n = 0;  static void fdevent_init(void)  //初始化  {    FD_ZERO(&read_fds);    FD_ZERO(&write_fds);    FD_ZERO(&error_fds);  }  static void fdevent_connect(fdevent *fde) //添加  {    if(fde->fd >= select_n) {       select_n = fde->fd + 1;    }  }  static void fdevent_disconnect(fdevent *fde)  //从所有事件集合删除fde  {    int i, n;    FD_CLR(fde->fd, &read_fds);    FD_CLR(fde->fd, &write_fds);    FD_CLR(fde->fd, &error_fds);    for(n = 0, i = 0; i < select_n; i++) {       if(fd_table != 0) n = i;    }    select_n = n + 1;  }  static void fdevent_update(fdevent *fde, unsigned events)//根据events设置事件集合  {    if(events & FDE_READ) {       FD_SET(fde->fd, &read_fds);    } else {       FD_CLR(fde->fd, &read_fds);    }    if(events & FDE_WRITE) {       FD_SET(fde->fd, &write_fds);    } else {       FD_CLR(fde->fd, &write_fds);    }    if(events & FDE_ERROR) {       FD_SET(fde->fd, &error_fds);    } else {       FD_CLR(fde->fd, &error_fds);    }    fde->state = (fde->state & FDE_STATEMASK) | events;  }  /* Looks at fd_table[] for bad FDs and sets bit in fds. ** Returns the number of bad FDs. */  static int fdevent_fd_check(fd_set *fds) //通过调用fcntl来判断是否是一个有效的fdevent  {    int i, n = 0;    fdevent *fde;    for(i = 0; i < select_n; i++) {       fde = fd_table;       if(fde == 0) continue;       if(fcntl(i, F_GETFL, NULL) < 0) {             FD_SET(i, fds);             n++;             // fde->state |= FDE_DONT_CLOSE;          }    }    return n;  }
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75

transport的原理是使用了fevent机制进行数据传输，atransport结构体的定义如下
struct atransport{ atransport *next; atransport *prev; int (*read_from_remote)(apacket *p, atransport *t); int (*write_to_remote)(apacket *p, atransport *t); void (*close)(atransport *t); void (*kick)(atransport *t); int fd; int transport_socket; fdevent transport_fde; int ref_count; unsigned sync_token; int connection_state; int online; transport_type type;       /* usb handle or socket fd as needed */ usb_handle *usb; int sfd;       /* used to identify transports for clients */ char *serial; char *product; char *model; char *device; char *devpath; int adb_port; // Use for emulators (local transport)       /* a list of adisconnect callbacks called when the transport is kicked */ int       kicked; adisconnect  disconnects; void *key; unsigned char token[TOKEN_SIZE]; fdevent auth_fde; unsigned failed_auth_attempts;};
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42

它是一个双向链表，所有的实体都保存在全局数据transport_list中：
static atransport transport_list = { .next = &transport_list, .prev = &transport_list,};
1
2
3
4
5
6

atransport的数据传输的两个函数是：
static intread_packet(int  fd, const char* name, apacket** ppacket){ char *p = (char*)ppacket;  /* really read a packet address */ int r; int len = sizeof(*ppacket); char  buff[8]; if (!name) {       snprintf(buff, sizeof buff, "fd=%d", fd);       name = buff; } while(len > 0) {       r = adb_read(fd, p, len);       if(r > 0) {          len -= r;          p += r;       } else {          D("%s: read_packet (fd=%d), error ret=%d errno=%d: %s\n", name, fd, r, errno, strerror(errno));          if((r < 0) && (errno == EINTR)) continue;          return -1;       } }#if ADB_TRACE if (ADB_TRACING) {       dump_packet(name, "from remote", *ppacket); }#endif return 0;}static intwrite_packet(int  fd, const char* name, apacket** ppacket){ char *p = (char*) ppacket;  /* we really write the packet address */ int r, len = sizeof(ppacket); char buff[8]; if (!name) {       snprintf(buff, sizeof buff, "fd=%d", fd);       name = buff; }#if ADB_TRACE if (ADB_TRACING) {       dump_packet(name, "to remote", *ppacket); }#endif len = sizeof(ppacket); while(len > 0) {       r = adb_write(fd, p, len);       if(r > 0) {          len -= r;          p += r;       } else {          D("%s: write_packet (fd=%d) error ret=%d errno=%d: %s\n", name, fd, r, errno, strerror(errno));          if((r < 0) && (errno == EINTR)) continue;          return -1;       } } return 0;}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63

这是它的内部传输接口，注意传输的是apacket的数据内部。
外部接口的数据传输接口是：
static void transport_socket_events(int fd, unsigned events, void *_t){ atransport *t = _t; D("transport_socket_events(fd=%d, events=%04x,...)\n", fd, events); if(events & FDE_READ){       apacket *p = 0;       if(read_packet(fd, t->serial, &p)){          D("%s: failed to read packet from transport socket on fd %d\n", t->serial, fd);       } else {          handle_packet(p, (atransport *) _t);       } }} void send_packet(apacket *p, atransport *t){ unsigned char *x; unsigned sum; unsigned count; p->msg.magic = p->msg.command ^ 0xffffffff; count = p->msg.data_length; x = (unsigned char *) p->data; sum = 0; while(count-- > 0){       sum += *x++; } p->msg.data_check = sum; print_packet("send", p); if (t == NULL) {       D("Transport is null \n");       // Zap errno because print_packet() and other stuff have errno effect.       errno = 0;       fatal_errno("Transport is null"); } if(write_packet(t->transport_socket, t->serial, &p)){       fatal_errno("cannot enqueue packet on transport socket"); }}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45

物理接口到atransport的接口是：
/* The transport is opened by transport_register_func before** the input and output threads are started.**** The output thread issues a SYNC(1, token) message to let** the input thread know to start things up.  In the event** of transport IO failure, the output thread will post a** SYNC(0,0) message to ensure shutdown.**** The transport will not actually be closed until both** threads exit, but the input thread will kick the transport** on its way out to disconnect the underlying device.*/static void *output_thread(void *_t){ atransport *t = _t; apacket *p; D("%s: starting transport output thread on fd %d, SYNC online (%d)\n",    t->serial, t->fd, t->sync_token + 1); p = get_apacket(); p->msg.command = A_SYNC; p->msg.arg0 = 1; p->msg.arg1 = ++(t->sync_token); p->msg.magic = A_SYNC ^ 0xffffffff; if(write_packet(t->fd, t->serial, &p)) {       put_apacket(p);       D("%s: failed to write SYNC packet\n", t->serial);       goto oops; } D("%s: data pump started\n", t->serial); for(;;) {       p = get_apacket();       if(t->read_from_remote(p, t) == 0){          D("%s: received remote packet, sending to transport\n",             t->serial);          if(write_packet(t->fd, t->serial, &p)){             put_apacket(p);             D("%s: failed to write apacket to transport\n", t->serial);             goto oops;          }       } else {          D("%s: remote read failed for transport\n", t->serial);          put_apacket(p);          break;       } } D("%s: SYNC offline for transport\n", t->serial); p = get_apacket(); p->msg.command = A_SYNC; p->msg.arg0 = 0; p->msg.arg1 = 0; p->msg.magic = A_SYNC ^ 0xffffffff; if(write_packet(t->fd, t->serial, &p)) {       put_apacket(p);       D("%s: failed to write SYNC apacket to transport", t->serial); }oops: D("%s: transport output thread is exiting\n", t->serial); kick_transport(t); transport_unref(t); return 0;}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69

这里做了一个物理到抽象的转换。最上层还有一层是tmsg的传输 , tmsg的作用是用于atransport的管理
void init_transport_registration(void){ int s[2]; if(adb_socketpair(s)){       fatal_errno("cannot open transport registration socketpair"); } transport_registration_send = s[0]; transport_registration_recv = s[1]; fdevent_install(&transport_registration_fde,                   transport_registration_recv,                   transport_registration_func,                   0); fdevent_set(&transport_registration_fde, FDE_READ);}/* the fdevent select pump is single threaded */static void register_transport(atransport *transport){ tmsg m; m.transport = transport; m.action = 1; D("transport: %s registered\n", transport->serial); if(transport_write_action(transport_registration_send, &m)) {       fatal_errno("cannot write transport registration socket\n"); }}static void remove_transport(atransport *transport){ tmsg m; m.transport = transport; m.action = 0; D("transport: %s removed\n", transport->serial); if(transport_write_action(transport_registration_send, &m)) {       fatal_errno("cannot write transport registration socket\n"); }}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42

未完待续。。。

admin · 发表于 2018-7-11 14:52:45

Android ADB工具 adb,adbd,client,server之间的关系

不多说我放一张图可以看出他们之间的大致关系
adb 是在用户HOST端，adbd是在设备端(emulator/real device)

adb

大致流程是这样的
1、client调用某个adb命令
2、adb进程fork出一个子进程作为server
3、server查找当前连接的emulator/device
4、server接收到来自client请求
5、server处理请求，将本地处理不了的请求发给emulator/device
6、位于emulator/device的adbd拿到请求后交给对应的java虚拟机进程。
7、adbd将结果发回给server
8、server将结果发回给client

yeca · 发表于 2018-7-31 16:35:04

就算花钱可以下载我也不带水的

xiamik1 · 发表于 2018-9-2 21:06:34

学习学习，谢谢分享………………

		自动登录	找回密码
密码			立即注册
